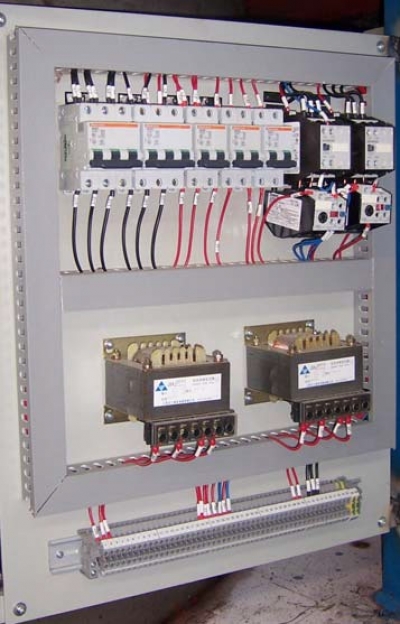

Control Panel Electric

The drive of this type machine is AC frequency speed control device with power feedback. The device uses PLC as the core.

The touch screen is the man-machine interface whose function is：
1. To set time for different process stages in automatic operation.
2. Provide function keys corresponding to right mechanical action in manual operation.
3. Show simulated real time display of the status of mechanical actions. It can operated automatically and manual.

• Frequency Motor: three phase380V, 50Hz, Tightness IP55, Insulation grade F, with absolute cooling fan, Squirrel-cage type and vertical installation.
• Siemens variable frequency speed control system, energy feedback.
• PLC：Siemens（西门子）品牌。
• Control panel: Siemens
